Pneumatic Self-Cleaning Rotating Permanent Magnet Iron Separator

●purpose
It can be installed in the scene that requires frequent cleaning and manual cleaning is inconvenient, which can greatly reduce labor costs.

● Work Principle

Based on the structure of the manual-clean type,the rotary grate can be automated, the magnetic system and the motor are installed on the linear slide rail, when cleaning the magnetic particles,the solenoid valve is energized, the cylinder pushes the bar out, and the scrapers squeezes the magnetic foreign matter to the non-magnetic area at the end of the bar and falls into the external magnetic matter discharge pipe; The solenoid valve is powered off, the cylinder returns the magnetic rod to the flow channel, and the magnetic material is cleaned up.

●Feature:

1,Excellent sealing not to leak the materials；

2, Good transmission and push-pull mechanism；

3, Coating: ETFEPTFE Nano-ceramic spraying

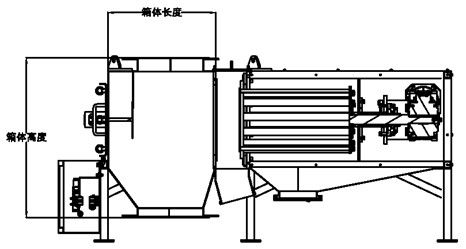

PARAMETER:

Piping ID(mm)

Case(L*W*H(mm)

Bar Length (mm)

Bar quantity

Peak gauss

DN150(φ159)

365*290*550

365

16000 GS

15000 GS

14000 GS

13000 GS

12000 GS

DN200(φ219)

420*340*605

420

DN250(φ273)

475*390*660

475

DN300(φ325)

530*440*715

530
