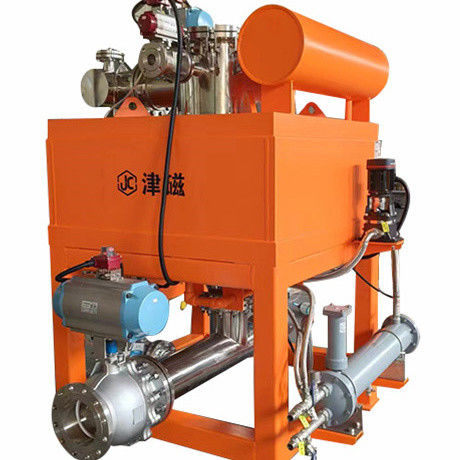

Stainless Steel Wet High Intensity Magnetic Separator Iron Absorber

 Stainless Steel Magnetic Filter, Liquid Slurry Strong Magnetic Rod, Iron Absorber.

Technical Advantages
High Efficiency: Captures micron- to millimeter-scale particles with 90%–99% removal rates.
Corrosion Resistance: Compatible with acidic, alkaline, or high-salinity environments.
Low Maintenance: Automated cleaning minimizes downtime; magnet lifespan exceeds 10 years.
Energy Efficiency: Permanent magnets consume zero power; electromagnets activate on demand.
Customization: Adaptable to pipe diameters (DN50–DN500), pressure ranges (ambient to 10 bar), and mounting orientations (vertical/horizontal).

Structure and Key Components
Magnetic System:
Permanent Magnet Type: Uses neodymium iron boron (NdFeB) or ferrite magnets with a field strength of 5,000–12,000 Gauss. No external power required, corrosion-resistant.
Electromagnetic Type: Generates adjustable fields (up to 20,000 Gauss) via energized coils, ideal for high-precision separation.
Magnetic Media:
Magnetic Rod Arrays: Parallel rods create dense magnetic zones for low-concentration, fine-particle slurries.
Magnetic Drums: Rotating drums with scrapers or reverse flushing for high-flow slurries.
Magnetic Grids: Mesh-like grids intercept large iron particles, often used as pre-filters in pipelines.
Chamber and Seals: Stainless steel (grades 304/316L) or engineering plastics (PP, PVDF) ensure corrosion and wear resistance, with sealed flanges to prevent leaks.
Cleaning Systems:
Manual Cleaning: Post-shutdown rod removal or manual cleaning via access ports.
Automatic Cleaning: PLC-controlled high-pressure spray, pneumatic scrapers, or demagnetization for uninterrupted operation.
Auxiliary Systems: Flow meters, pressure sensors, and alarms monitor slurry velocity and contamination levels.
