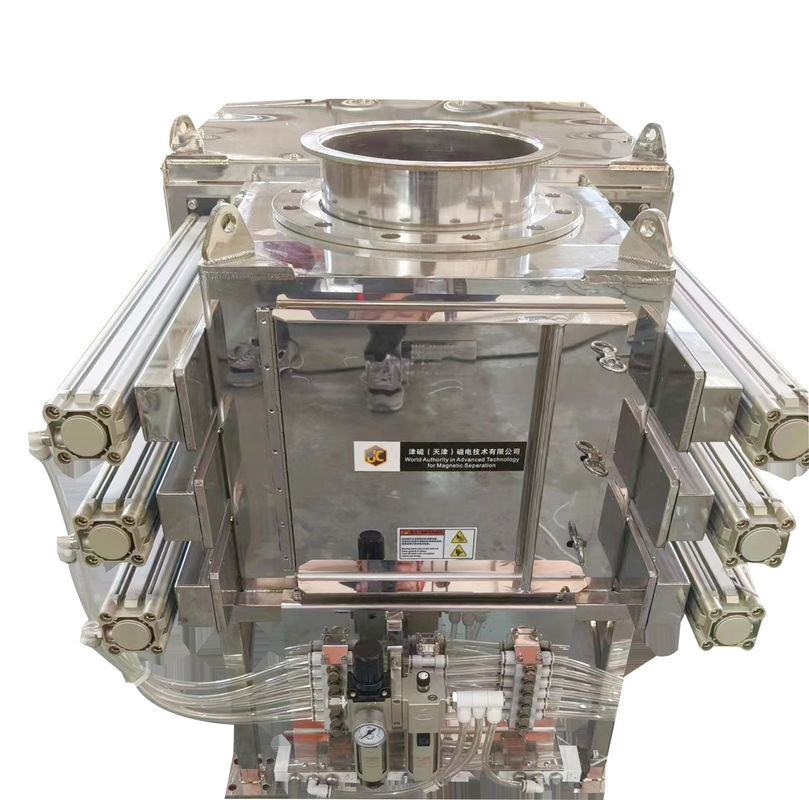

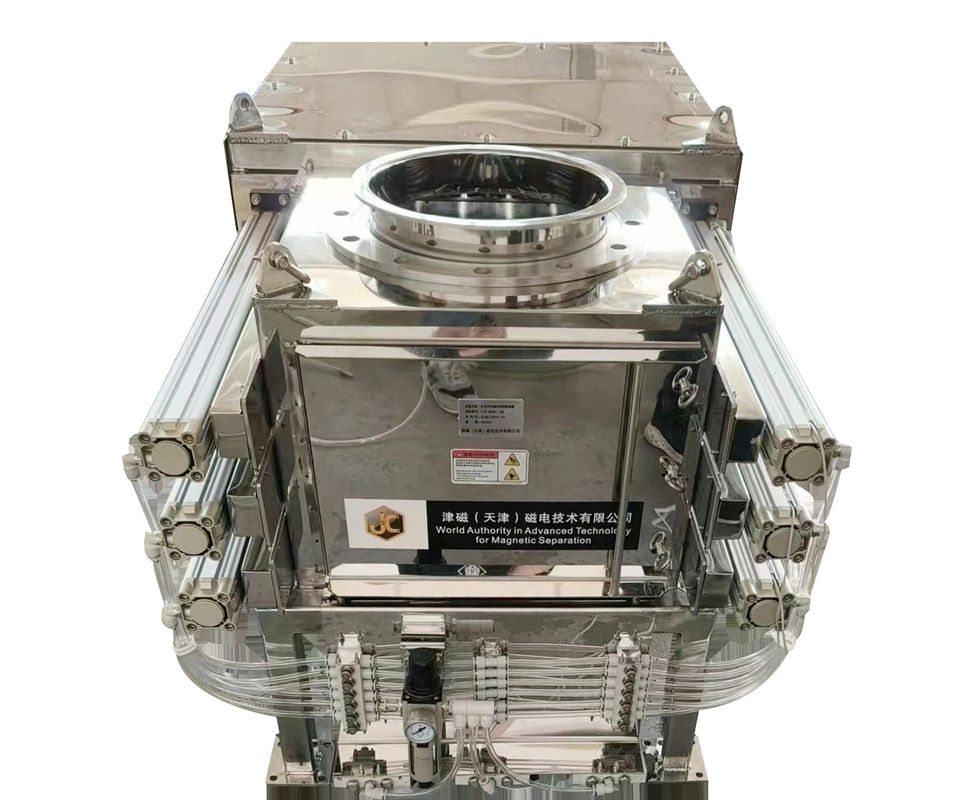

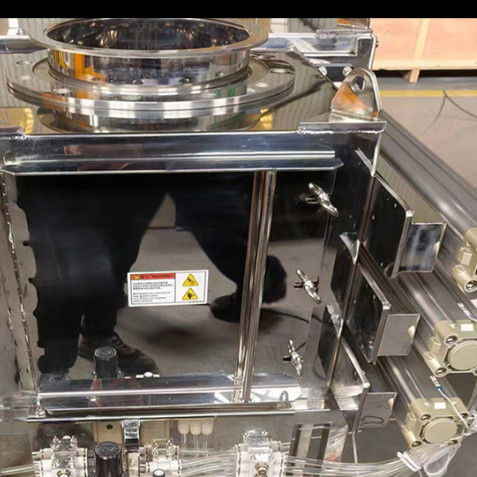

Magnetic strong dry electromagnetic iron deductor Full sealed long life electromagnetic iron deductor.
This type combines the superior stength of Rare Earth magnets into a completely automated self cleaning system to automatically remove fine tramp iron contamination.
On the basis of manual drawer type , the self-cleaning one increases the automatic cleaning structure, controlled by PLC, the cleaning system can set automatic iron removal frequency and interval time according to the iron content, the system will automatically clean up miscellaneous iron according to the set time, without manual intervention, so the automatic cleaning one can meet the continuous work of the production line.
it can work in applications where you cannot afford to shut the system down for cleaning and must ensure tramp metal protection at all times, it cycles each grate row independently so at least one row always remains in the product flow. Easier, more frequent, cleaning prevents excessive buildup on the magnets and assures maximum separating efficiency. the single skin tubes are housed in a dust-tight all stainless steel housing
FEATURES
Unique tube scraper design ensures removal of accumulated tramp iron Stainless steel housing with safety guard for moving parts
Available with one or multiple grate rows
Automatic tramp metal removal of individual magnet rows
Independent cleaning for each magnet row
que tube scraper design ensures removal of accumulated tramp iron Stainless steel housing with safety guard for moving parts
1,Continuous feeding can be achieved to ensure continuous production
2,the Unique closed design of the can be achieved to ensure no leakage
whatever the positive pressure and negative pressure conditions
3,the scraper and the ring is very simple and durable, easy to take and clean
4,Special non-metal scraping ring to ensure good result and long life
5,The slide runs smoothly and the speed is adjustable
6,The magnetic system mechanism is equipped with a protective cover to increase
safety and prevent foreign objects from falling into it
7,Customized to meet the customers’ requests；
8,For materials with poor fluidity, optional vibrator is added；
9,synchronous and asynchronous iron unloading function,
10,Coating: ETFEPTFE Nano-ceramic spraying
