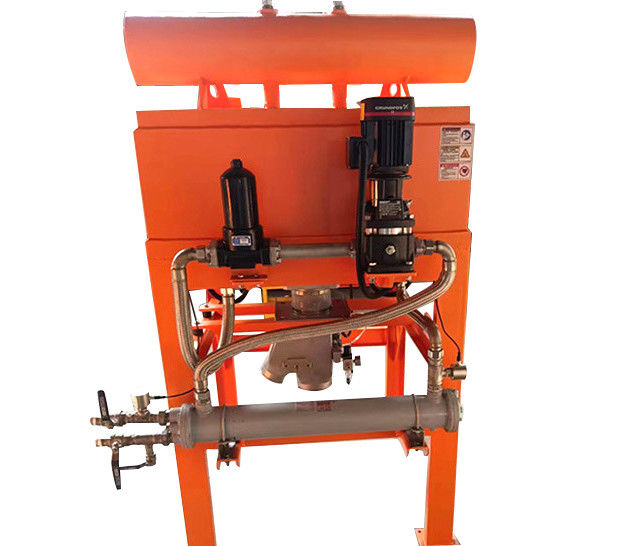

Self Unloading Electromagnetic Iron Remover For Stone Factories Wood Processing Plants Coal Washing Plant

The electromagnetic iron remover, the self-unloading electromagnet, is suitable for stone factories, wood processing plants, and coal washing plants, and is sturdy and durable.

Sorting System​
Steel wool or steel plate mesh is generally used as the filling medium to increase the magnetic field gradient. This can effectively improve the sorting effect for weakly magnetic impurities. The system can sense a magnetic field strength of 8 - 10T, facilitating the separation of weakly magnetic impurities .​

Cooling System​
To ensure the stability and safety of the electromagnetic coils during long - term operation, a cooling device is equipped. For example, circulating water or transformer oil is used for cooling. For instance, the DCX wet - type automatic magnetic separator uses 25# transformer oil as the insulating oil for the electromagnetic windings and adopts forced - circulation heat dissipation. The temperature rise of the oil is ≤60℃.​

Electrical Control System​
Programmable control is adopted to achieve full - automatic control of the entire production process. It is convenient to change the technological process. The system can also automatically monitor operating parameters such as flow rate, temperature, and pressure, and collect data automatically, facilitating production management and quality control .​

Feeding and Discharging System​
Automatic feeding and discharging devices are available to ensure the uniform and stable entry and exit of materials from the magnetic separator. The valves of some magnetic separators use reliable solenoid valves. Through programming control, a full - automatic process for feeding, discharging, and iron removal is achieved.​

Application Fields​
Non - metallic Mineral Purification​
It is used for the purification and refinement of non - metallic minerals such as kaolin, bauxite, quartz sand, and feldspar. Fine weakly magnetic coloring impurity particles such as Fe₂O₃ and TiO₂ can be removed, improving the quality and whiteness of the ore.​
