Fully Automatic Dry Electromagnetic Separator For New Energy Battery Materials

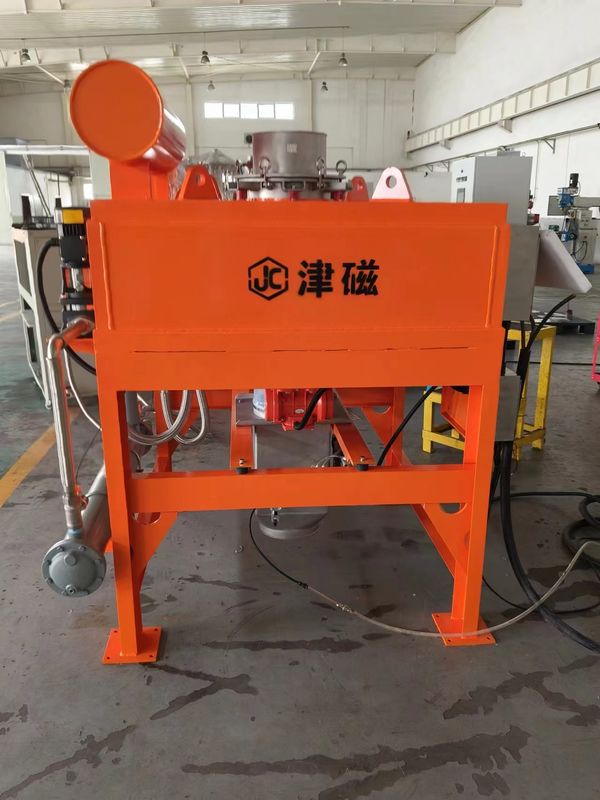

AUTOMATIC    ELECTROMAGNETIC    DRY    POWDER   IRON  SEPARATOR

The fully automatic electromagnetic dry powder magnetic separator is suitable for new energy battery materials, food, and quartz materials.

Work Principle

 The electromagnet consists of a solenoid coil encased in a steel housing. A high intensity uniform magnetic field is generated in the bore of the coil. Within the bore is a canister, packed with filter elements, which are referred to as the matrix. The matrix consists of a stack of expanded steel plates arranged with staggered openings to accommodate the material flow. The matrix amplifies the externally applied magnetic field, produces regions of extremely high gradient and provides collection sites for the capture of ferrous contaminants. A dual vibratory drive system, mounted on the canister, imparts a high frequency, low amplitude vibration to the matrix. When feed material flows through the magnetized matrix, the iron bearing contaminants are captured and held, resulting in a high purity product. the non-magnetic product flows freely through the canister, aided by the matrix vibration. Typical application: lithium anode and cathode materials, non-ferrous material purification.

●Main Characterics:
