Removing Iron Electromagnetic Slurry Magnetic Separator Fully Automatic

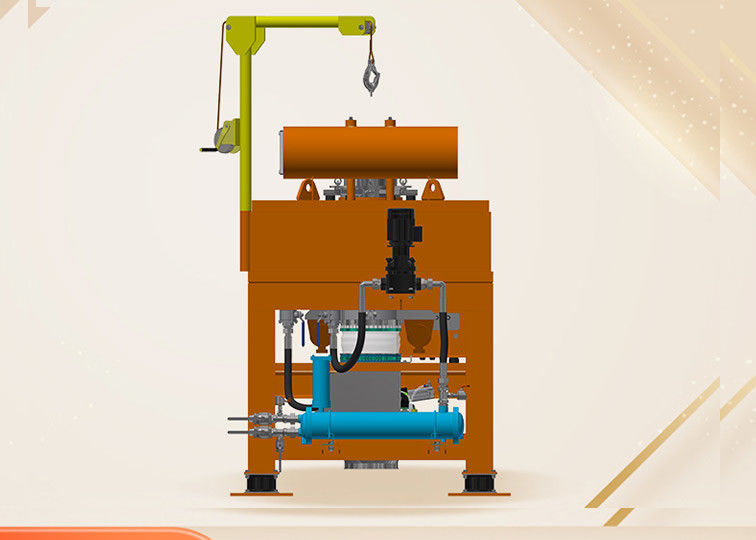

AUTOMATIC ELECTROMAGNETIC SLURRY IRON SEPARATOR

The fully automatic electromagnetic slurry magnetic separator is suitable for removing iron impurities from slurries and has powerful iron removal ability.

 ●Purpose

If it includes the slurry processing in the production, It is recommended to separate in the slurry state, because it is very easy to disperse

●Work Principle

The electromagnet consists of a solenoid coil encased in a steel housing. A high intensity uniform magnetic field is generated in the bore of the coil. Within the bore is a canister, packed with filter elements, which are referred to as the matrix. The matrix consists of a stack of expanded steel plates arranged with staggered openings to accommodate the material flow. The matrix amplifies the externally applied magnetic field, produces regions of extremely high gradient and provides collection sites for the capture of ferrous contaminants. When feed material flows through the magnetized matrix, the iron bearing contaminants are captured and held, resulting in a high purity product. the non-magnetic product flows freely through the canister  with flush water.

●Model Selection

The electromagnetic separator depends on two values to set the sizing, one is the background gauss(the magnetic field strength in the cavity after the magnetic conductive medium is removed) ,the other is the processing. Example: CTS 150-5000
