Name: ≥70mt Drawer Type Permanent Magnetic Separation Machine For Plastic Production Industry
Brand: Jinci(Tianjin)Magnetics Co.,Ltd.
SKU: JC-01
Price: 100 USD
Availability: InStock

Home > products > Permanent Magnetic Separator >

≥70mt Drawer Type Permanent Magnetic Separation Machine For Plastic Production Industry

70mt magnetic separator machine

70mt magnetic separation machine

plastic magnetic separator machine

Place of Origin:

CHINA

Brand Name:

Model Number:

JC-01

Request A Quote

≥70mt Drawer Type Permanent Magnetic Separation Machine For Plastic Production Industry

Product Details

Strength:

6,000-16,000gauss

Resistant Temp:

60-150℃

Product Characteristics:

Iron Removal

Power Supply Voltage:

220V/380V

Ore Feeding Method:

Magnetic Separator With Bottom Ore Feeding

Coating:

ETFE\PTFE\ Nano-ceramic Spraying

Magnetic Field Strength:

≥70mt

Highlight:

70mt magnetic separator machine

70mt magnetic separation machine

plastic magnetic separator machine

Payment & Shipping Terms

Minimum Order Quantity

Price

100,000

Packaging Details

Base support + Wooden case

Delivery Time

2 to 4 weeks

Payment Terms

T/T,BA

Supply Ability

Strong

Customizable Suspended Permanent Magnetic Separators Tailored Solutions Iron Removal

Get Best Price

Pipeline Type Magnetic Iron Remover With Low Energy Consumption

Get Best Price

Permanent Magnetic Destoner Machine For Mining Chemical & Food Industries Magnetic Separator

Get Best Price

Permanent Magnetic Drum Separator 220V/380V With High Iron Removal Efficiency

Get Best Price

Contact Now

Product Description

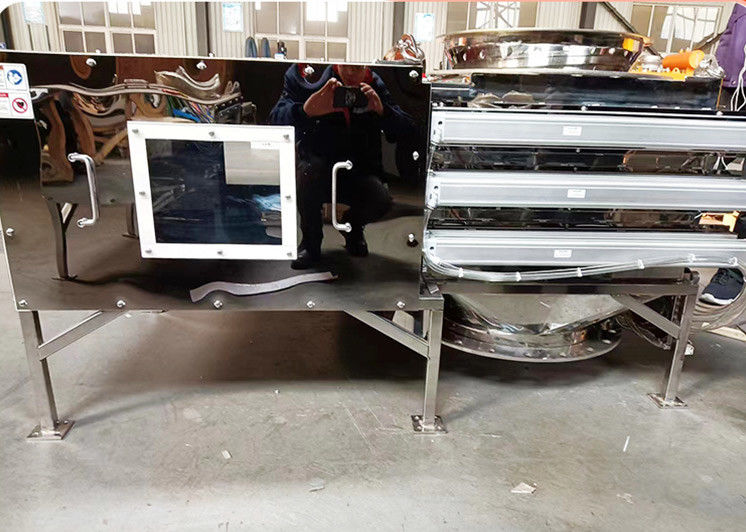

The drawer-type permanent magnet magnetic separator is suitable for the plastic production industry, with high cost-effectiveness and powerful iron removal ability.

DRAWER TYPE PERMANENT MAGNET IRON SEPARATOR-manual clean

●Usage

It is used to remove the ferromagnetic impurities from dry powder, flake, granular materials.

●Application Commonly used in lithium carbonate, lithium hydroxide, lithium iron phosphate, ternary precursor, ternary battery anode and cathode materials, ceramics, chemicals, plastics, mining, food and so on.

●Feature

1,Strength:6,000-16,000gauss；

2,Resistant Temp.:60-150℃;

3,Demagnetization rate: ≤5% in 3 years ;

4, can be customized

5, Spraying: ETFEPTFE nano ceramic, etc.

●1.Manual clean type- need to draw the tube to clean; Advantage:1.econocal and practical 2.occupied smaller space Disadvantage:1.big labor cost; 2.unconvenient for the on-site management

●2.Sleeve Drawer Type, only need to clean the casing It’s easy to clean, the disadvantage is the strength can be lower with the sleeve, suitable for the occasion not need so strong strength

. ●Parameter:

ID(mm)

Outer Dimension(mm)

Layer

Bar quantity

Height(mm)

Peak Value

DN150(φ159)

220X200

7(2+3+2)

370

16000 GS

15000 GS

14000 GS

13000 GS

12000 GS

DN200(φ219)

270X260

10(3+4+3)

370

DN250(φ273)

330X300

13(4+5+4)

370

18(5+4+5+4)

440

27(5+4+5+4+5+4)

580

DN300(325)

390X370

16(5+6+5)

430

22(5+6+5+6)

520

33(5+6+5+6+5+6)

610
