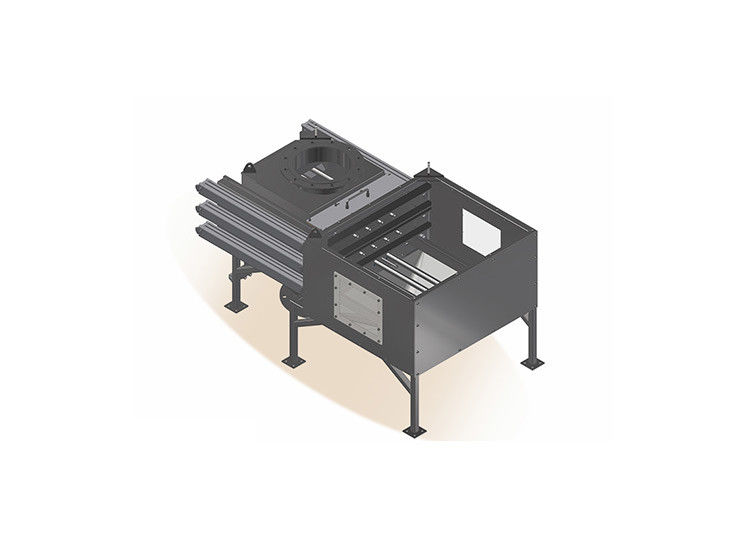

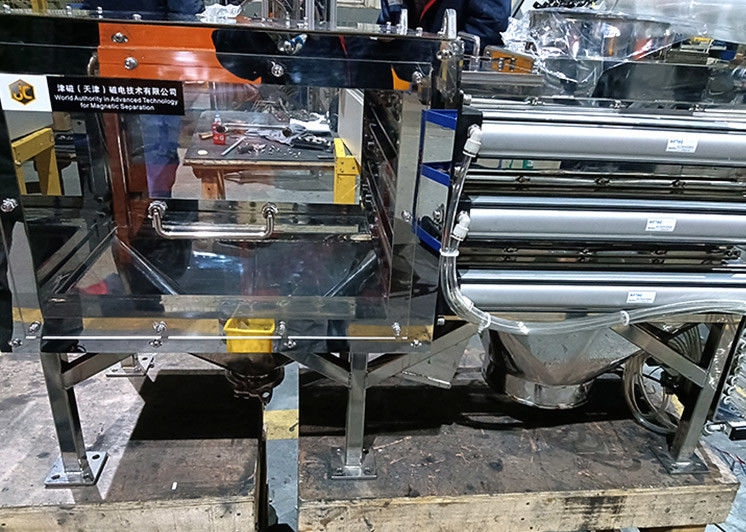

Special Casing Type Fully Automatic Liquid Pipeline Magnetic Separator Machine For Lithium Battery Industry

The special casing-type fully automatic liquid pipeline magnetic separator for the lithium battery industry features good quality and long durability.

PNEUMATIC SELF-CLEANING ROTATING PERMANENT MAGNET IRON SEPARATOR

●purpose

 It can be installed in the scene that requires frequent cleaning and manual cleaning is inconvenient, which can greatly reduce labor costs.

● Work Principle

Based on the structure of the manual-clean type,the rotary grate can be automated, the magnetic system and the motor are installed on the linear slide rail, when cleaning the magnetic particles,the solenoid valve is energized, the cylinder pushes the bar out, and the scrapers squeezes the magnetic foreign matter to the non-magnetic area at the end of the bar and falls into the external magnetic matter discharge pipe; The solenoid valve is powered off, the cylinder returns the magnetic rod to the flow channel, and the magnetic material is cleaned up.

●Feature:

1,Excellent sealing not to leak the materials；

2, Good transmission and push-pull mechanism；

3, Coating:  ETFEPTFE Nano-ceramic spraying

●Parameter
