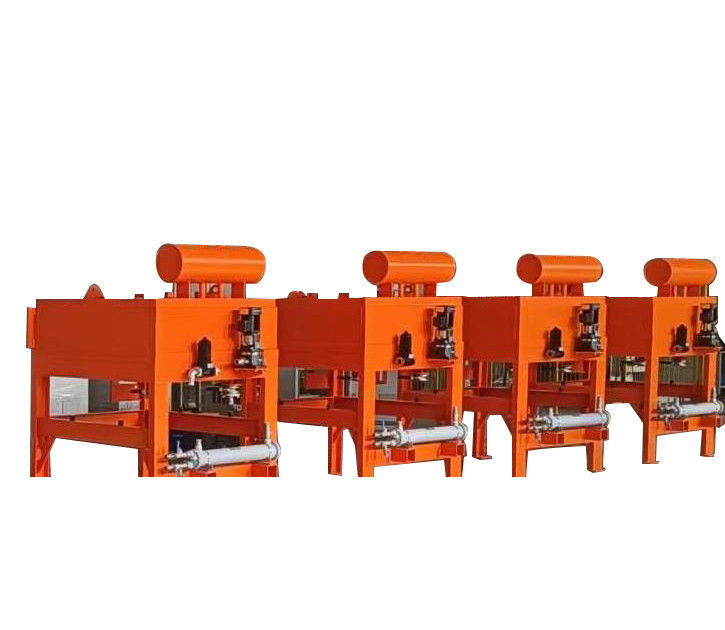

Dry Powder Electro Magnetic Separator Iron Removal Rate Can Reach Up To 98%

DRY POWDER ELECTRO MAGNETIC SEPARATOR,The iron removal rate can reach up to 98%

The separation principle

The electromagnet consists of a solenoid coil encased in a steel housing. A high intensity uniform

magnetic field is generated in the bore of the coil.

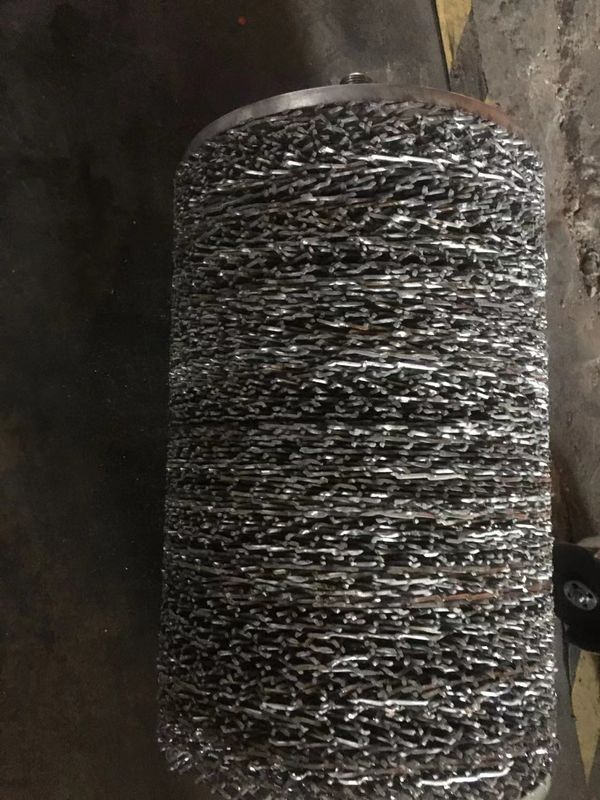

Within the bore is a canister, packed with filter elements, which are referred to as the matrix. The matrix consists of a stack of expanded steel plates arranged with staggered openings to accommodate the material flow. The matrix amplifies the externally applied magnetic field, produces regions of extremely high gradient and provides collection sites for the capture of ferrous contaminants.

A dual vibratory drive system, mounted on the canister, imparts a high frequency, low amplitude vibration to the matrix. When feed material flows through the magnetized matrix, the iron bearing contaminants are captured and held, resulting in a high purity product. the non-magnetic product flows freely through the canister, aided by the matrix vibration.

Typical application: lithium anode and cathode materials, non-ferrous material purification

●Improvement and Innovation

Since finishing the production of the 1st set,with more knowledage about the application,we improve a lot to accommodate the customer requests.

1. 1st set

2. changing the recling angle of the flap valve to meke the flow smoothly;

3. the discharging outlet smaller to make the whole body easier;

4.Better piping to ensure the sealing to eliminate the leakage:

5.Shocking buffering parts

6. special sleeve adoption to make the coil linking much more safe

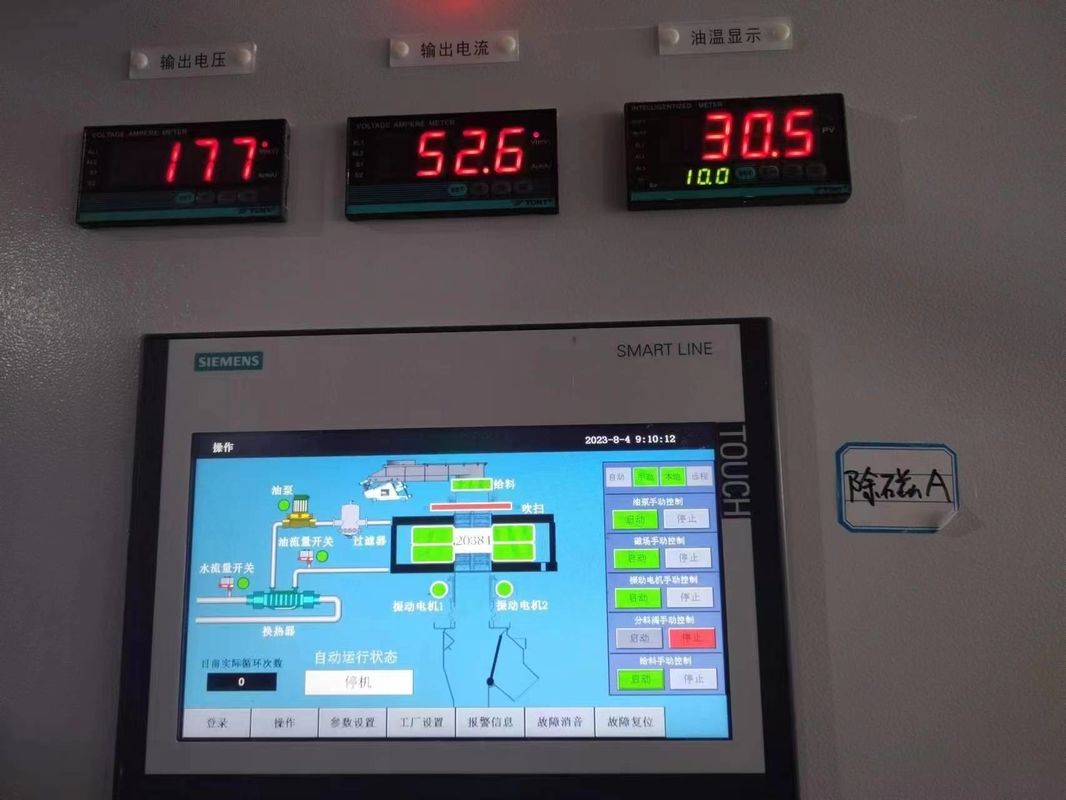

7.Constant current design to make the separator work smoothly.
