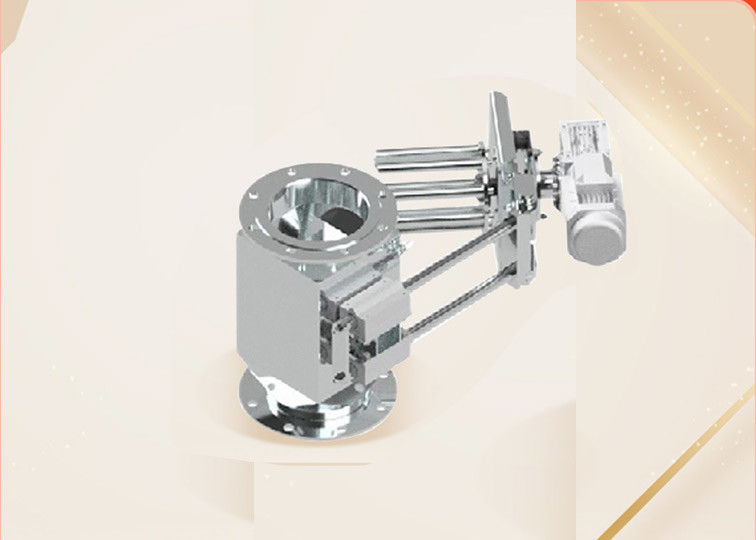

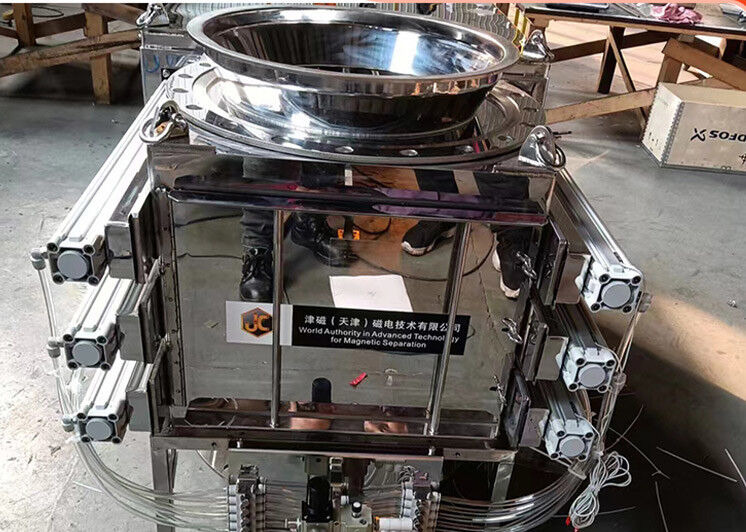

Rotary Permanent Magnetic Separators 304 Or 316SS Structure

Rotary permanent magnetic separators have good performance when dealing with materials that have poor fluidity, are sticky, or prone to clogging.

　　Applications

　　It is used to remove ferromagnetic impurities from dry powdery,flaky,granular,and other materials.It is commonly applied in battery anode and cathode materials such as lithium carbonate,lithium hydroxide,lithium iron phosphate,ternary precursors,and ternary materials,as well as in ceramics,chemical engineering,plastics,mining,food,and other industries.

　Performance

　　Magnetic Field Strength:6,000-16,000 Gauss;

　　Temperature Resistance:60-350°C;

　　Demagnetization Rate:The demagnetization rate within 3 years is≤5%;

　　Customizable;

　　Spraying:ETFE,PTFE,nano-ceramic spraying,etc.

　Selection Guide

　　Selection Based on Impurity Removal Rate Requirements and Site Environment:For places with high iron removal requirements,such as coal transportation ports and large thermal power plants,choose permanent magnetic separators with high magnetic field strength and good iron removal effects.In harsh environments like dusty and humid conditions,select equipment with good sealing performance and strong environmental adaptability.

　　Consideration of Installation Location:When installed at the head of the belt conveyor,the materials are in a loose state when leaving the belt,which is conducive to iron removal.When installed in the middle of the belt conveyor,non-magnetic flat idlers can be used to improve the iron removal effect.Special designs are required for special site environments.

　　Configuration for Multi-Stage Iron Removal:When multi-stage iron removal is adopted,the iron removal capacity of the subsequent stage should be stronger than that of the previous stage to ensure the iron removal effect.
