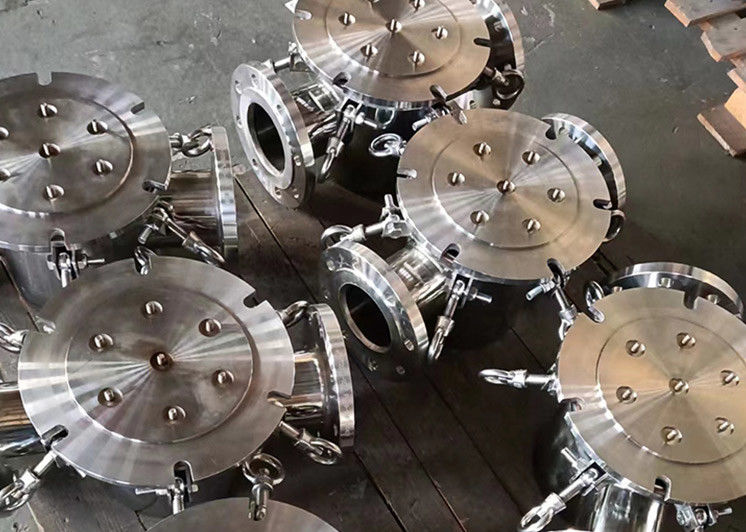

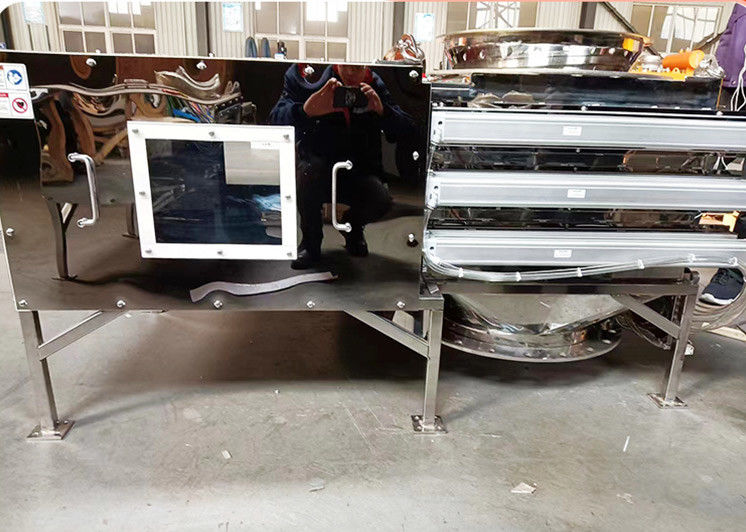

Professional Drawer Type Permanent Magnetic Separator Adjustable for Mining Ceramic and Plastic Industries

Professional Drawer Type Permanent Magnetic Separator with Adjustable Magnetic Field - Suitable for Mining, Ceramic, and Plastic Industries - Fast Delivery

Working Principle

　　By leveraging the high-intensity magnetic field region formed by permanent magnets,when materials containing magnetic impurities pass through the magnetic field area of the separator,the magnetic impurities are attracted to the surface or interior of the separator under the action of the magnetic force,thus separating from the materials and achieving the purpose of iron removal.

　　Applications

　　It is used to remove ferromagnetic impurities from dry powdery,flaky,granular,and other materials.It is commonly applied in battery anode and cathode materials such as lithium carbonate,lithium hydroxide,lithium iron phosphate,ternary precursors,and ternary materials,as well as in ceramics,chemical engineering,plastics,mining,food,and other industries.

Technical Advantages

　　Energy-Efficient:Utilizing high-performance permanent magnetic materials like neodymium iron boron as the magnetic source,it does not require excitation coils and rectifier control devices,eliminating excitation current.This results in energy savings,and without temperature rise issues,the magnetic field strength remains constant,regardless of"cold"or"hot"states.

　　Stable Performance:The selected permanent magnetic materials have extremely low demagnetization characteristics.Under normal use conditions for 10 years,the attenuation rate of magnetic properties does not exceed 3%,ensuring long-term stable operation of the equipment.The equipment has a reasonable structural design,such as the use of sealed bearing housings and drum-shaped rollers,which reduces failure points and improves reliability,allowing it to adapt to harsh environments like high or low temperatures,humidity,and dust.

　　Flexible Control:The control part can be interlocked with the belt conveyor,enabling two control methods:local manual control and centralized control.This allows operators to flexibly adjust according to actual production situations.

Parameters

　　Selection Guide

　　Selection Based on Impurity Removal Rate Requirements and Site Environment:For places with high iron removal requirements,such as coal transportation ports and large thermal power plants,choose permanent magnetic separators with high magnetic field strength and good iron removal effects.In harsh environments like dusty and humid conditions,select equipment with good sealing performance and strong environmental adaptability.

　　Consideration of Installation Location:When installed at the head of the belt conveyor,the materials are in a loose state when leaving the belt,which is conducive to iron removal.When installed in the middle of the belt conveyor,non-magnetic flat idlers can be used to improve the iron removal effect.Special designs are required for special site environments.

　　Configuration for Multi-Stage Iron Removal:When multi-stage iron removal is adopted,the iron removal capacity of the subsequent stage should be stronger than that of the previous stage to ensure the iron removal effect.
