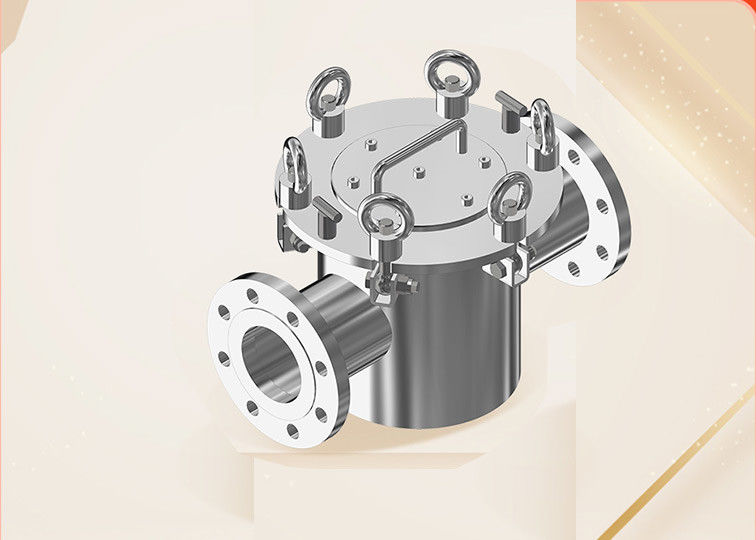

Liquid Pipeline Type Permanent Magnetic Iron Remover And Magnetic Separator High Efficiency

Liquid pipeline type permanent magnetic iron remover and magnetic separator is applicable to the lithium battery industry. It utilizes the magnetic attraction principle to achieve high-efficiency sepa

Usage Iron removal for liquid slurry can effectively remove iron pollutants, avoid damage to subsequent equipment, and improve the purity of material.

Application

Lithium battery industry,battery positive and negative electrode materials and electrolyte iron removal, etc., the magnet part is composed of strong magnetic rod, the material enters from the inlet, and the magnetic tube contact collision adsorbed magnets.

     ● Function 1. Field strength: 6000-16000 Gauss; 2. Temperature resistance: 60-350℃; 3. Shell material: 304SS, 316SS, Ti; 4. Magnetic tube material: 316 LSS, Ti; 5. Pressure resistance: 0.6-1.6Mpa; 6. Connection mode: flange, clamp, thread, etc.; 7 Top cover connection mode: bolt type or fast open type; 8. Surface treatment: polishing or spraying of tungsten carbide       in contact with the material, The outer surface can be        sandblasted, brushed and polished; 9. Seal ring material: silica gel, fluorine rubber, and so on; 10. Specification of passing cylinder: φ 159, φ 219, φ273mm, etc. ● Sleeve-type liquid pipe iron remover Advantages: easy to clean up;  Disadvantages: the field strength will be weakened.

● Parameter
